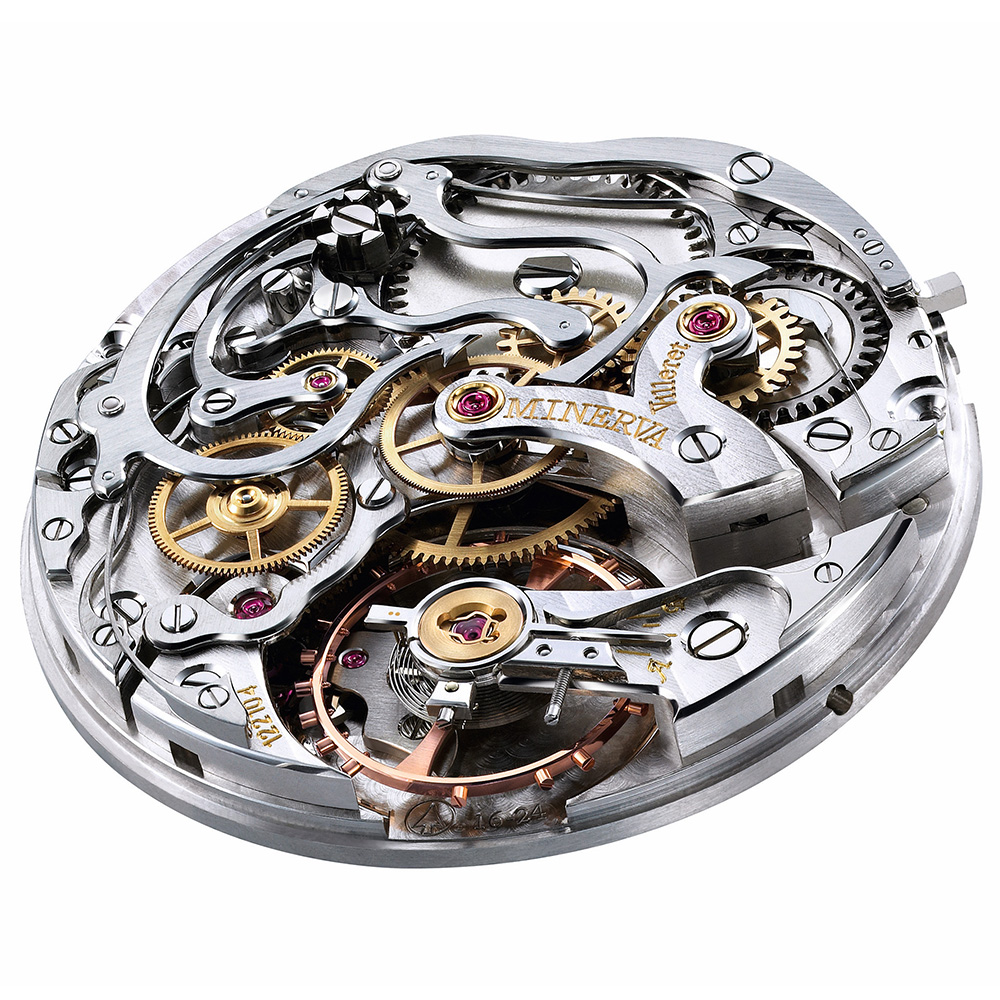

Montblanc caliber M16.24 is a hand-wound monopusher chronograph movement with 24-hour display. It measures 38.4mm at a height of 6.3mm.
The chronograph is controlled by a column wheel and features horizontal coupling.
It consists of a total of 252 parts including 22 jewels.
The power reserve is approximately 50 hours.
It features a screw balance with a diameter of 14.5mm and a movement of inertia of 59 mgcm².
It beats at a frequency of 18,000 A/h (2.5 Hz) and has a hairspring with Phillips terminal curve.
The main plate is made of rhodium-coated German silver with circular graining on both sides and hand-chamfered edges.
The bridges are made of rhodium-coated German silver with “Côtes de Genève”, circular graining on both sides and hand-chamfered edges.
The going train is gold-coated, circular grained, chamfered, and features diamond hubs on both sides
Montblanc Caliber MB M16.24
TECHNICAL DATA
| Country of Manufacture |
|---|
FUNCTIONS
| Base |
Minerva caliber
|
|---|---|
| Movement type | |
| Functions | |
| Display |
4 hands, Central seconds chronograph hand, Small seconds hand at 9:00, Central minute hand, 30-minute chronograph hand at 3:00, Central 24-hour hand |
| Chronograph |
Column wheel, Monopusher, 60-second counter, 30-minute counter |
| Power reserve | |
| Jewel | |
| Frequency |
Detailed description
