DUW 4301

NOMOS Glashütte - DUW 4301

DUW 4301

TECHNICAL DATA

Brand:	NOMOS Glashütte
Family:	NOMOS Glashütte > Calibers
Reference:	DUW 4301
SKU:	NOMOS-DUW4301
Name:	DUW 4301
Produced:	2014 In production

Country of Manufacture	Germany

FUNCTIONS

Caliber	NOMOS Glashütte Caliber Gamma
Movement type	Manual Winding
Certification	None
Functions	Hacking stop, Power reserve indicator
Display	3 hands, Power reserve indicator at 1:00, Small seconds hand at 6:00, Central hour hand, Central minute hand
Power reserve	43 h
Jewel	17
Frequency	21,600 vph (3Hz)

DIMENSIONS

Diameter	23.3 mm
Lignes	10½"'
Thickness	2.8 mm

ADDITIONAL INFORMATION

Anti-Shock System	Incabloc
Escapement	NOMOS swing system

Compare

Add to wishlist

Comment

Donate now

Detailed description

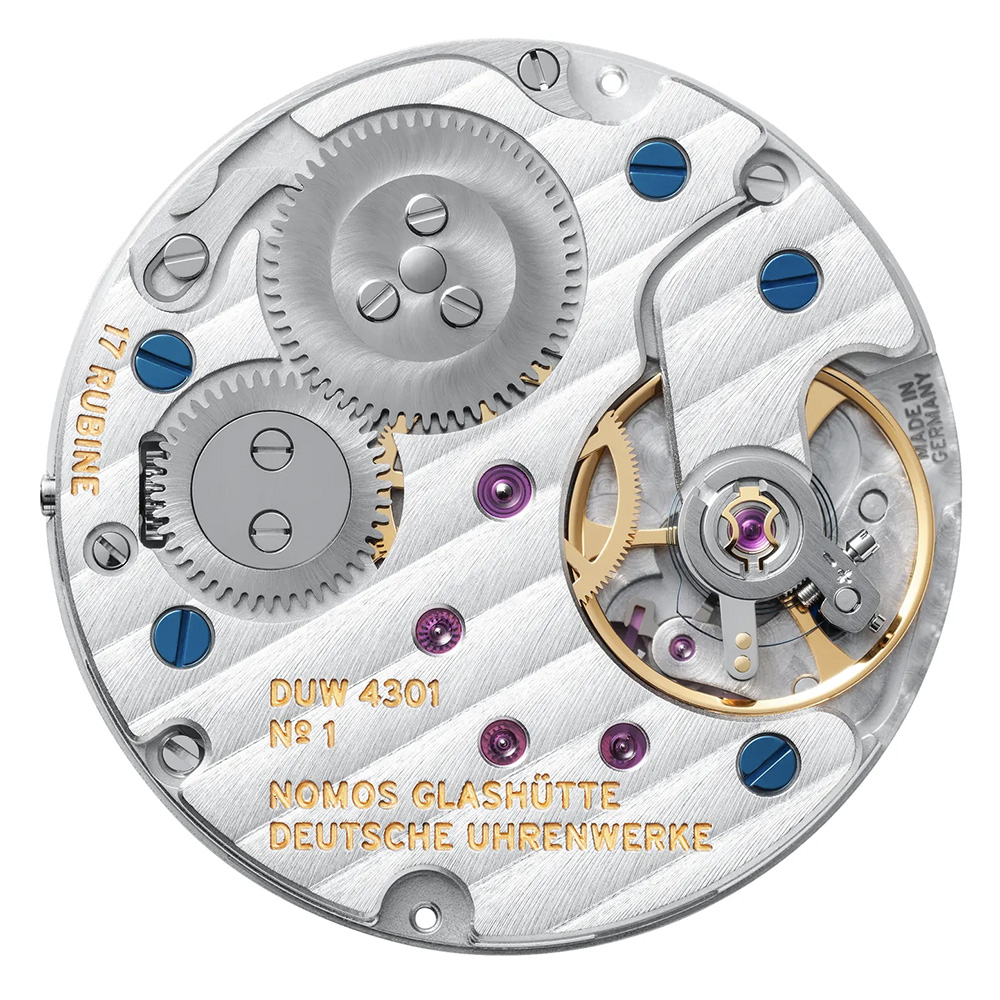

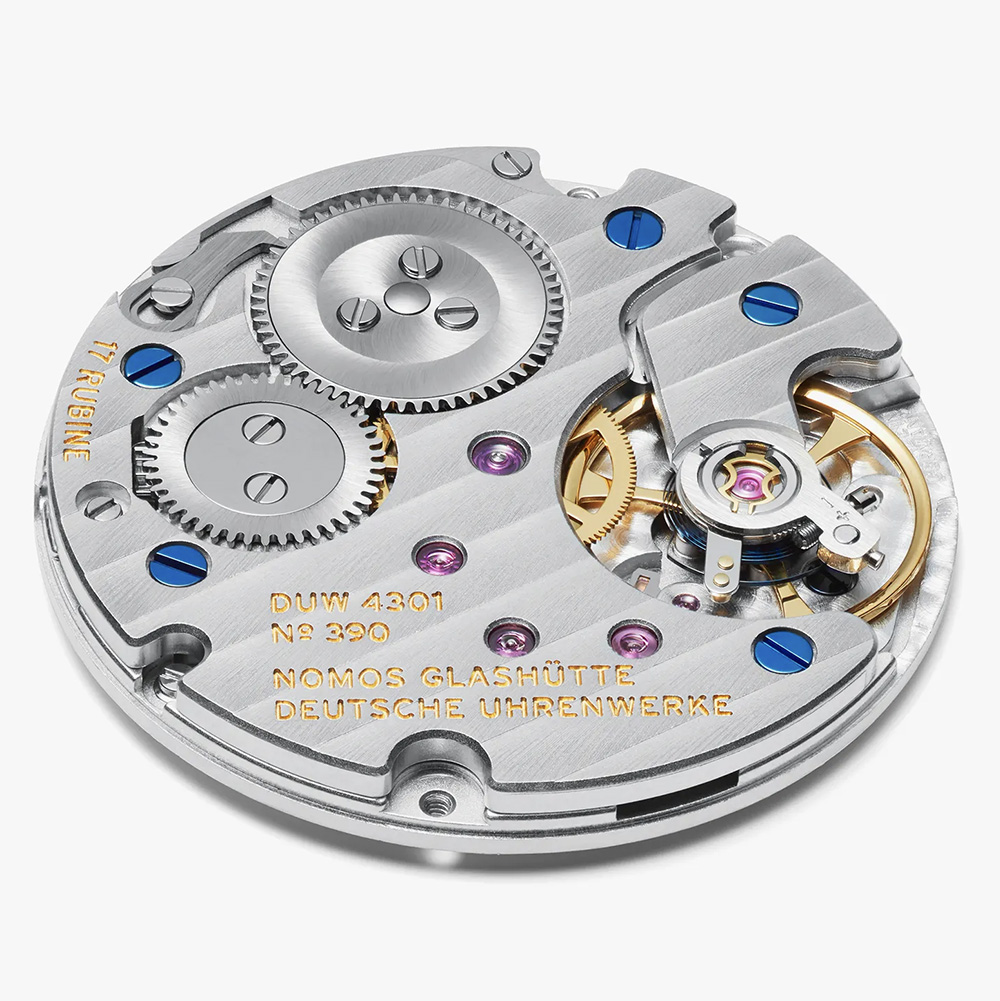

The NOMOS caliber DUW 4301 also features the in-house built NOMOS swing system (that now renowned pacesetter and escapement, recognizable by the blue balance spring). Thanks to its patented NOMOS power reserve indicator, it also reminds you when it’s time to rewind the watch—a practical feature reminiscent of a car’s fuel gauge.

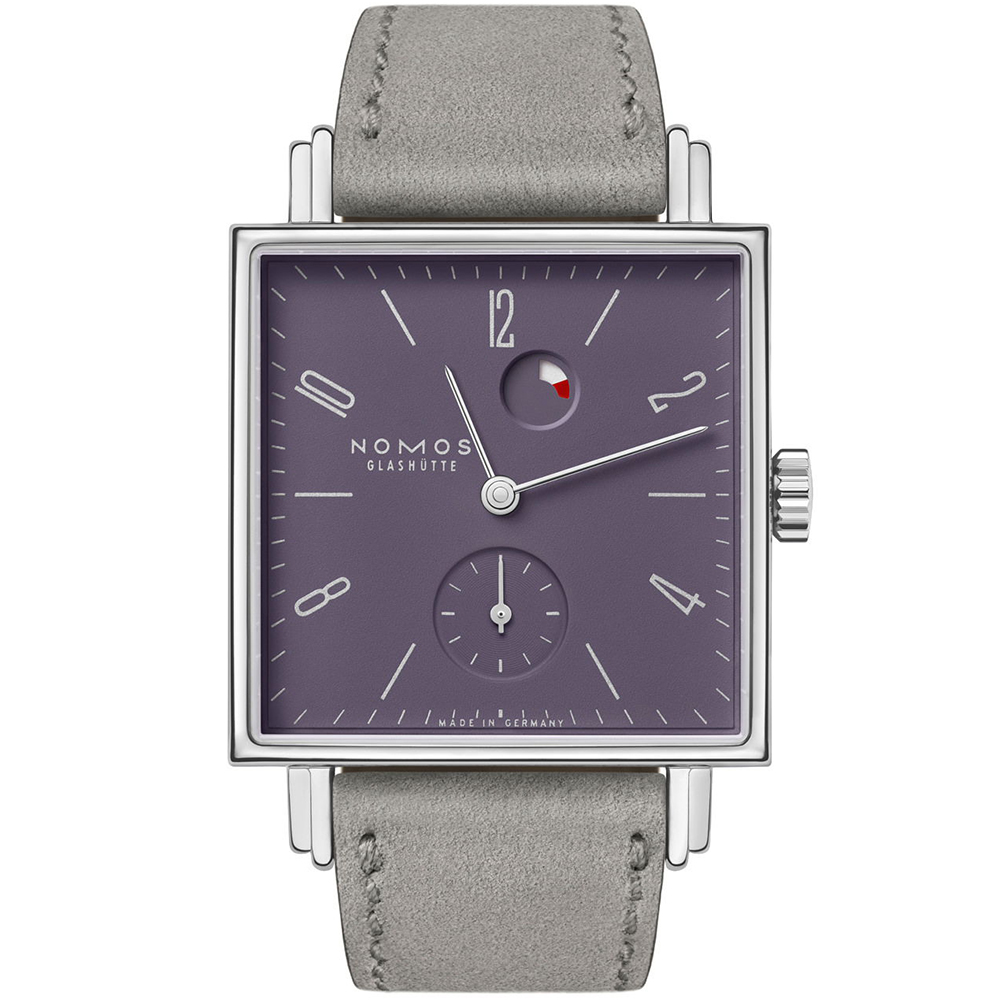

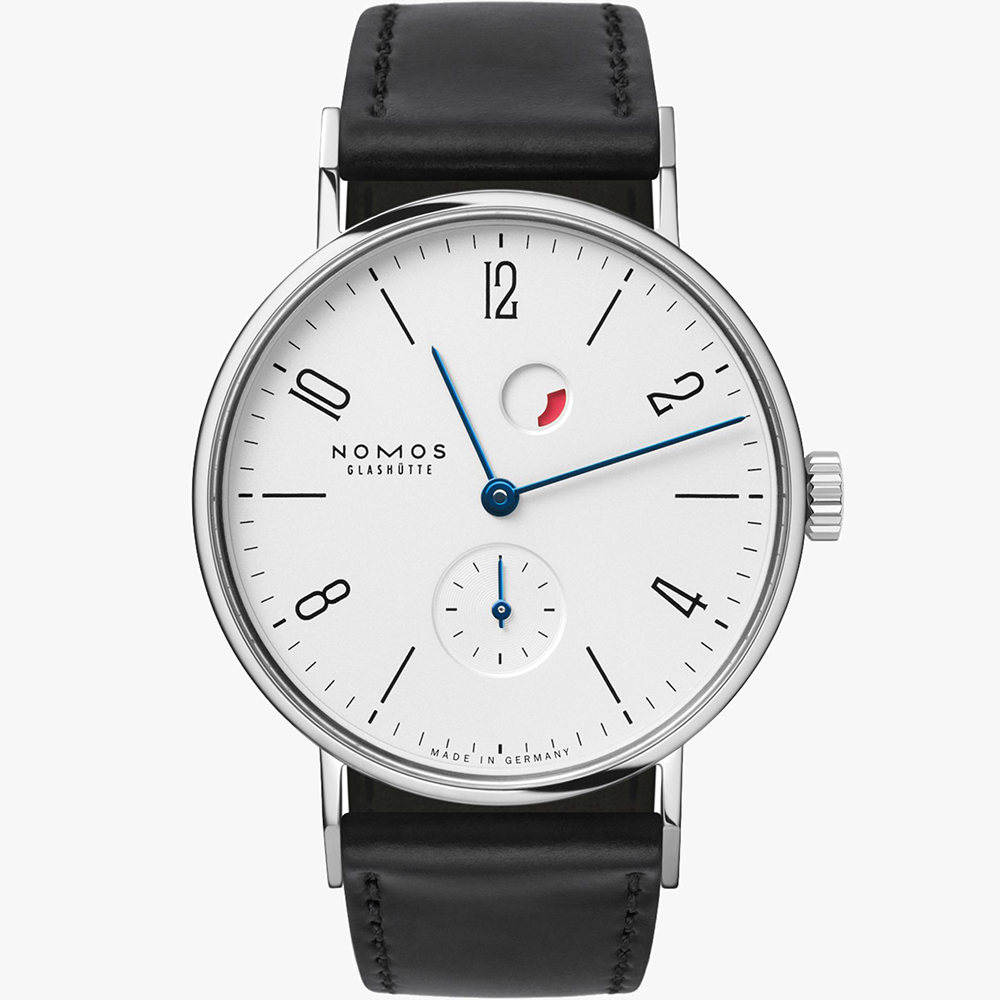

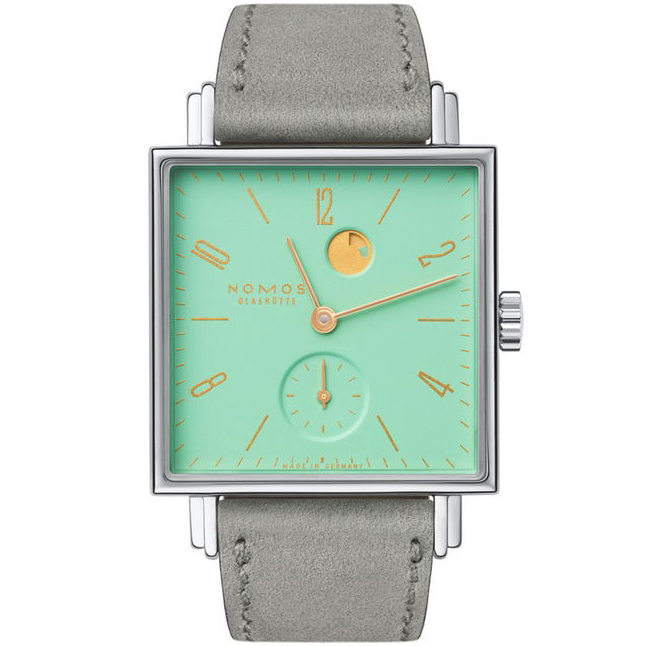

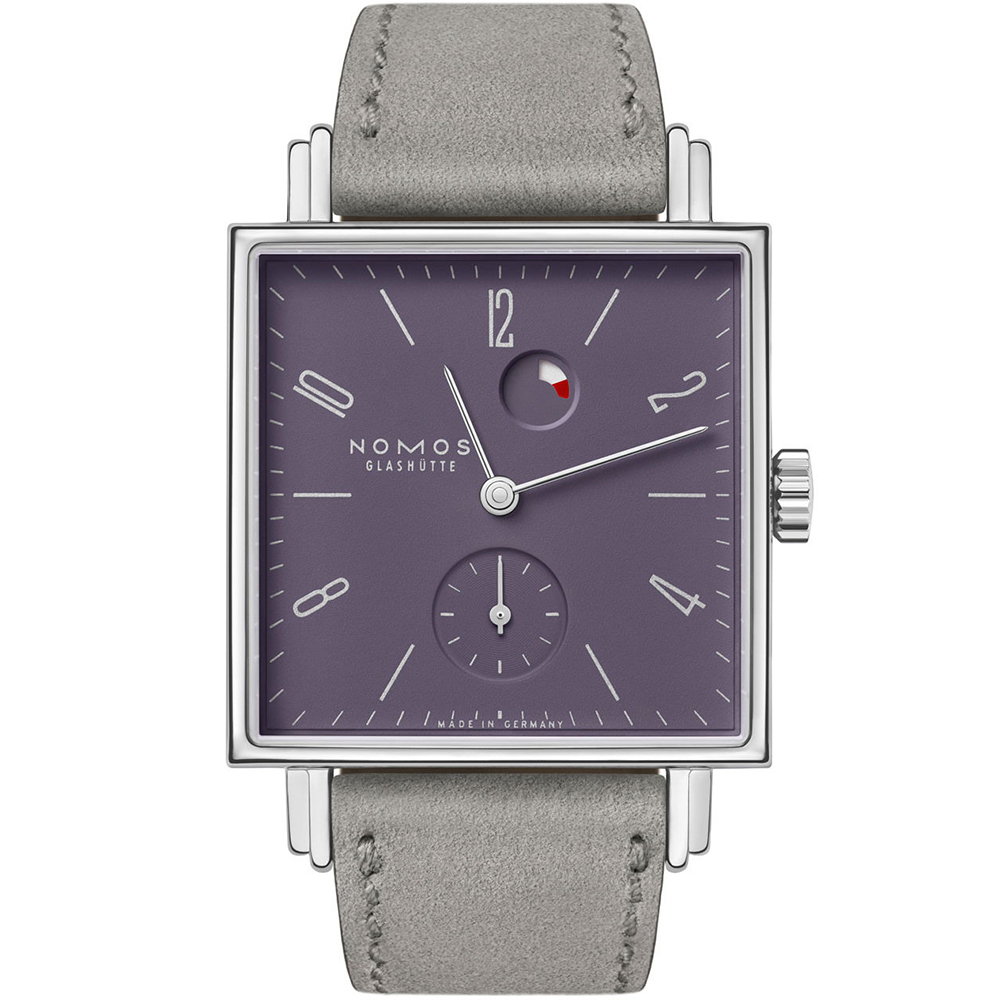

This unusually beautiful and high performance motor is at work within numerous NOMOS watches, such as Tetra Kleene and Tangente power reserve. Like all other hand-wound NOMOS calibers, it is also extremely slender and highly precise.

Special qualities

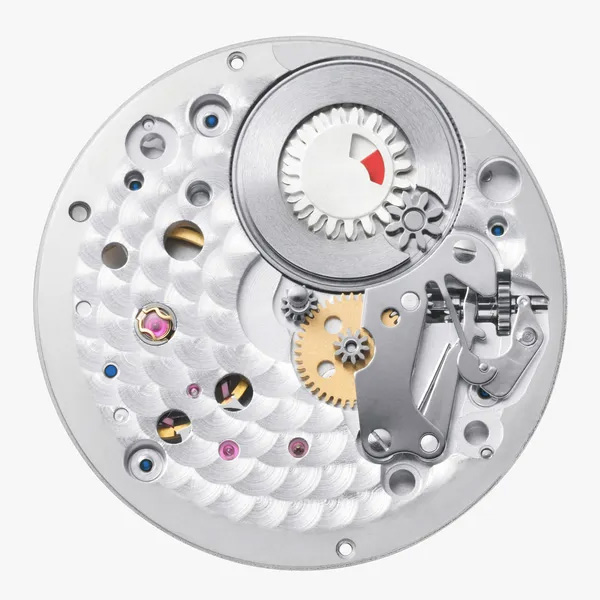

patented power reserve mechanism
NOMOS swing system
tempered blue balance spring
stop-seconds mechanism
Glashütte stopwork
Glashütte three-quarter plate
adjusted in six positions
17 jewels
tempered blue screws
rhodium-plated surfaces with Glashütte ribbing and NOMOS perlage
ratchet and crown wheel with Glashütte sunburst
