DUW 5201

NOMOS Glashütte - DUW 5201

DUW 5201

TECHNICAL DATA

Brand:	NOMOS Glashütte
Family:	NOMOS Glashütte > Calibers
Reference:	DUW 5201
SKU:	NOMOS-DUW5201
Name:	DUW 5201
Produced:	2014 In production

Country of Manufacture	Germany

FUNCTIONS

Caliber	NOMOS Glashütte Caliber Xi
Movement type	Self Winding
Certification	None
Functions	Time-zones, Date, Hacking stop, Quick date correction, World time
Display	3 hands, City window at 9:00, Current city indicator at 12:00, Small seconds hand at 6:00, Central hour hand, Central minute hand, Date window at 6:00, Outer worldtimer disc
Power reserve	42 h
Jewel	26
Frequency	21,600 vph (3Hz)

DIMENSIONS

Diameter	31 mm
Lignes	13¾ "'
Thickness	5.7 mm

ADDITIONAL INFORMATION

Anti-Shock System	Incabloc
Rotor style	Ball-bearing, Central rotor
Rotor winding direction	Bi-directional
Escapement	NOMOS swing system
Regulator System	DUW regulation system

Compare

Add to wishlist

Comment

Donate now

Detailed description

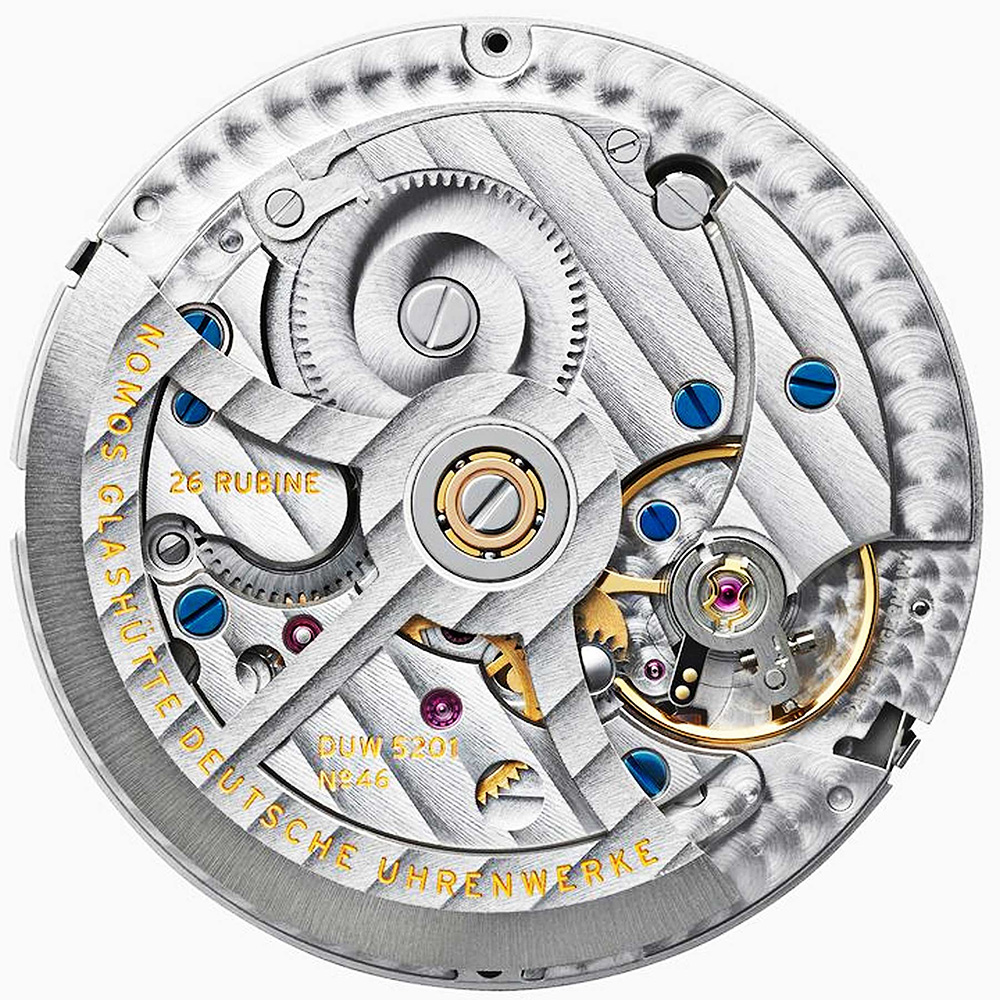

Around the world and back again: DUW 5201—the first automatic caliber with the in-house NOMOS swing system—makes this possible. It ticks inside all watches with a world time mechanism and is, despite its complication, quite simple to use. And what does DUW stand for? NOMOS Glashütte Deutsche Uhrenwerke—underlining our in-house caliber production and promising you fine watchmaking from Glashütte.

Special qualities

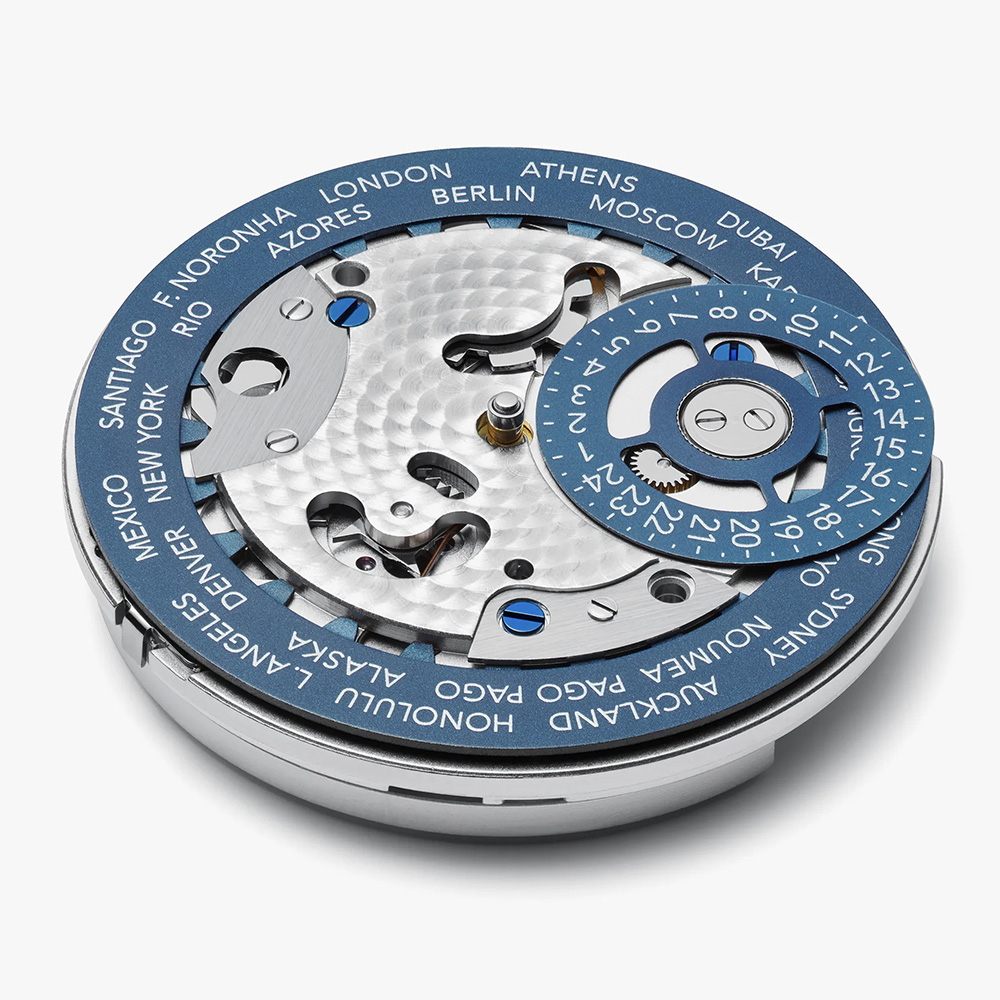

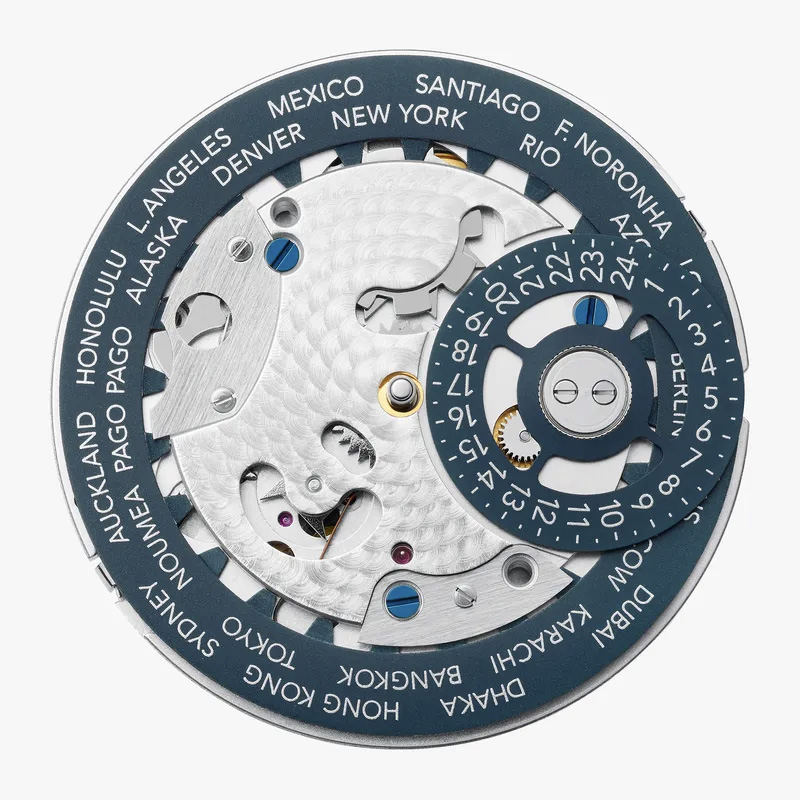

worldtime mechanism
NOMOS swing system
tempered blue balance spring
stop-seconds mechanism
Glashütte stopwork
bidirectional winding rotor
Glashütte three-quarter plate
DUW regulation system
adjusted in six positions
26 jewels
tempered blue screws
rhodium-plated surfaces with Glashütte ribbing and NOMOS perlage
ratchet and duplex wheel with Glashütte sunburst
