Panerai Caliber P.9010/EL

Panerai Caliber P.9010/EL

TECHNICAL DATA

Brand: Panerai
Family: Panerai > Calibers
Reference: P.9010/EL
SKU: PaneraiP.9010-EL (P.9010/ELUX, P.9010-EL)
Name: Panerai Caliber P.9010/EL
Produced: 2024 In production
Country of Manufacture

,

DIMENSIONS

Diameter

Lignes

Thickness

ADDITIONAL INFORMATION

Anti-Shock System

Balance

Number of parts

Rotor style

Detailed description

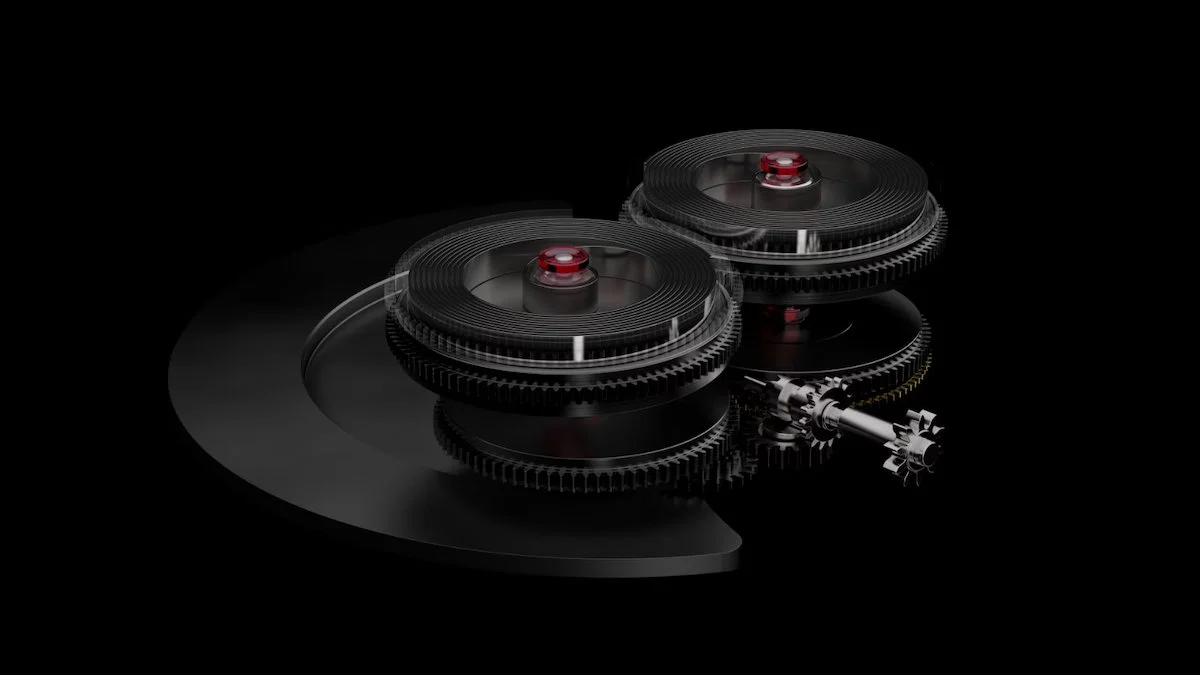

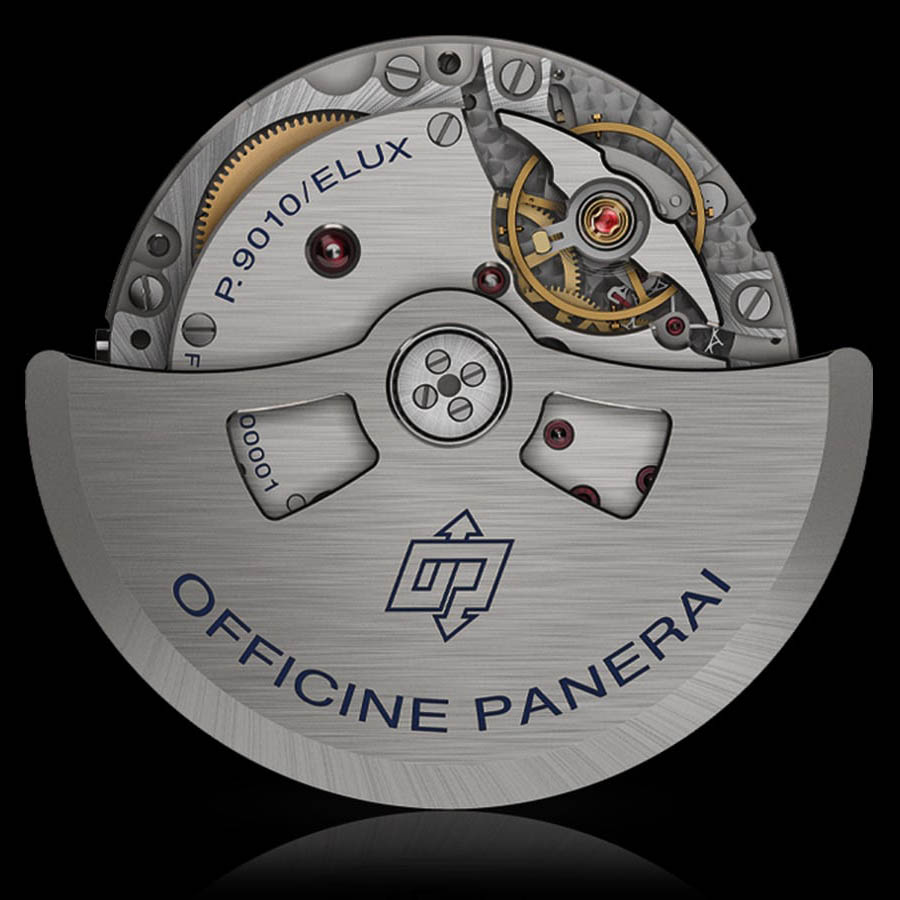

The automatic caliber, composed of 363 components, includes six barrels: four dedicated to storing energy for the 30-minute on-demand Power Light function and two reserved for maintaining a three-day power reserve for time indication.

The six barrels can be wound either automatically or manually. To enhance winding speed, the oscillating mass weight has been increased by 235% compared to the traditional P.9010 caliber and is equipped with a new ball-bearing system for improved shock resistance.

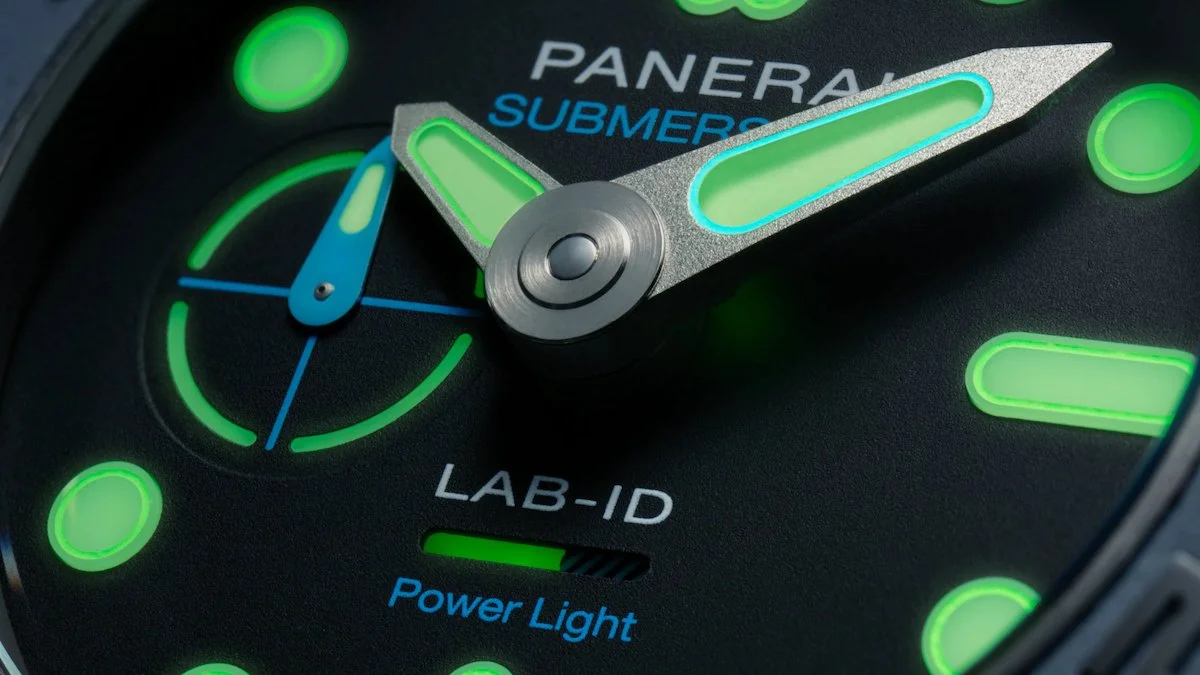

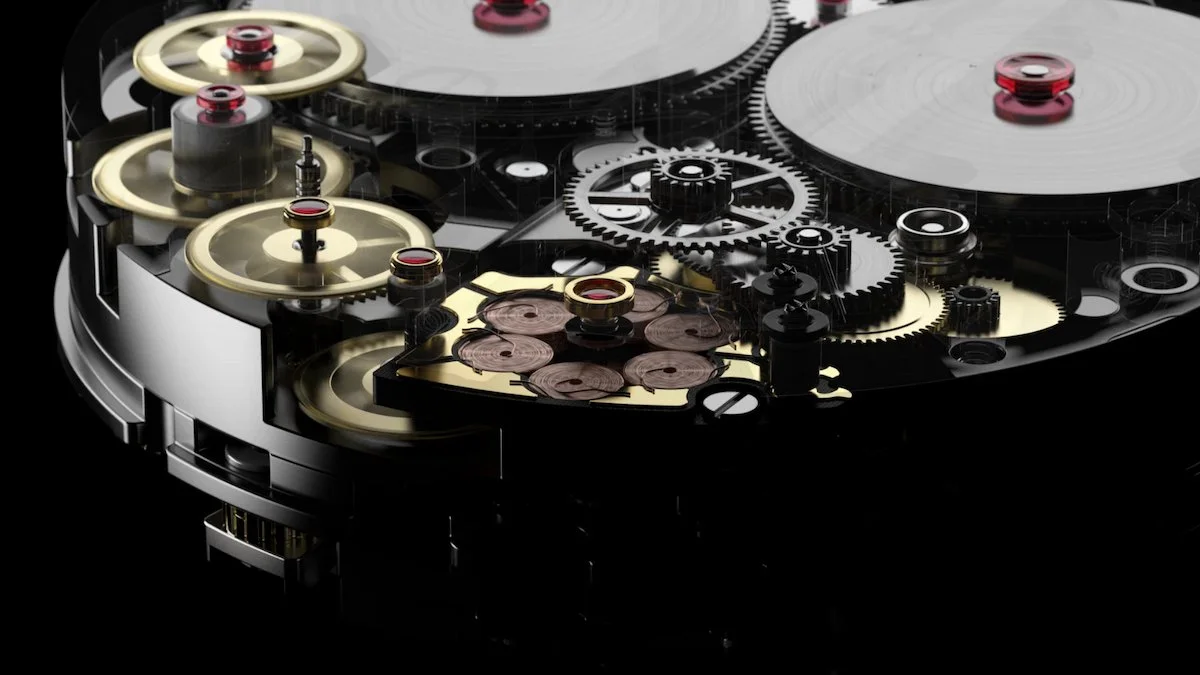

This caliber features an ad-hoc microgenerator that transforms the mechanical energy stored in the four dedicated barrels into electricity for the Power Light function. The compact microgenerator, measuring 8 x 2.3 mm, incorporates custom-made coils, magnets, and a stator to optimize energy efficiency. It operates with a high-speed rotor spinning at 80 revolutions per second, generating a 240 Hz high-frequency electrical signal to power the 160 micro-LEDs on the dial, hands, and bezel.

Optimizing energy efficiency was a primary challenge, given the limited energy stored in the barrels, but the result is a meticulously engineered system tailored for this innovative functionality.

* 3 days automatic calibre made of 363 components with 6 barrels, of which 4 barrels dedicated to produce the energy required to ensure 30 minutes of on-demand Power Light function & 2 barrels dedicated to 3 days of time power reserve,

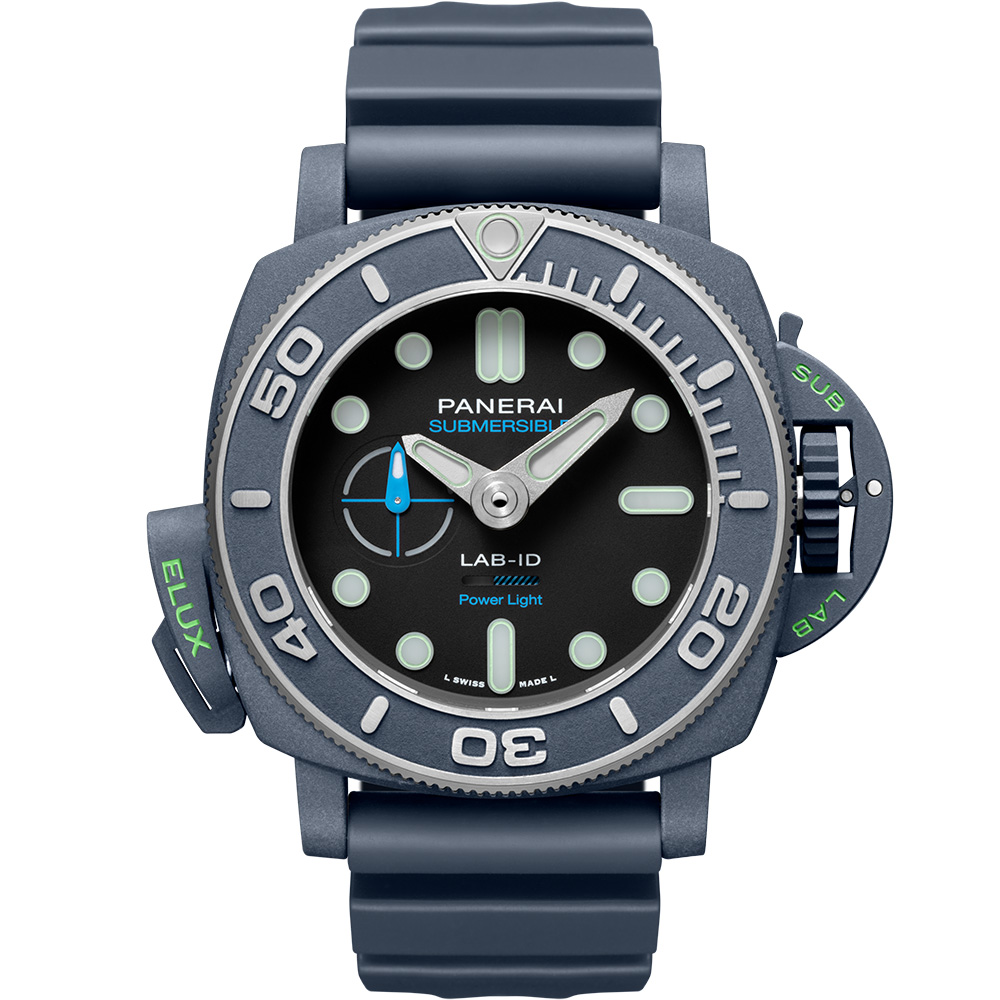

All watches using the Panerai Caliber P.9010/EL
